COMPUTER PROGRAMMING 2014 WEEK 8

GRAPHIC WINDOW WITH JFRAME and JPANEL CLASSES

EXERCISE 1

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

public class FrameGraphic extends JFrame

{ private static final long serialVersionUID = 8000000L;

JPanel d;

public FrameGraphic(String a,JPanel di)

{ super(a);

//setLayout( new FlowLayout() );

d=di;

add(d);

}

public static void plot(String a,JPanel di)

{

FrameGraphic f = new FrameGraphic(a,di);

f.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );

f.setSize(1200,800);

f.setVisible(true);

}

}

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

import java.awt.Color.*;

public class WelcomeP extends JPanel

{ private static final long serialVersionUID = 8000001L;

String isim;

public WelcomeP()

{isim=JOptionPane.showInputDialog("enter your name : ");}

public void paint(Graphics g)

{

Graphics2D g2=(Graphics2D)g;

g2.setFont(new Font("Serif",Font.BOLD,48));

g2.drawString("Welcome to Java class " + isim,50,50);

}

}

class H8Ex1 {

public static void main(String args[])

{FrameGraphic.plot("Welcome to graphic window",new WelcomeP());}}

EXERCISE 2

import java.awt.*;

import java.awt.event.*;

import javax.swing.event.*;

import java.awt.geom.*;

import java.net.URL;

import java.awt.image.*;

import java.util.*;

public class pictureP extends JPanel

{ private static final long serialVersionUID = 8000002L;

private Image picture;

public pictureP(String s)

{super();

URL url = getClass().getResource(s);

picture = getToolkit().getImage(url);

}

public void paint(Graphics g)

{

Graphics2D g2=(Graphics2D)g;

Dimension d=getSize();

int dx = d.width;

int dy = d.height;

g2.drawImage( picture, 0, 0,dx,dy, this);

}

}

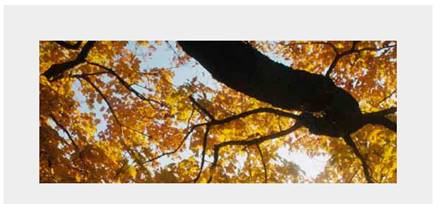

class H8Ex2 {

public static void main(String args[])

{

pictureP pp=new pictureP("fall.jpg");

FrameGraphic.plot("fall",pp);

}}

EXERCISE 3

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class lineP extends JPanel

{ private static final long serialVersionUID = 8000003L;

public void paintComponent(Graphics g)

{

super.paintComponent(g);

Graphics2D g2=(Graphics2D)g;

g2.setFont(new Font("Serif",Font.BOLD,24));

this.setBackground(Color.BLACK);

g2.setColor(Color.red);

g2.setStroke(new BasicStroke(1.0f));

Line2D x=new Line2D.Double(50,50,800,800);

g2.draw(x);

g2.setColor(Color.blue);

Line2D x1=new Line2D.Double(50,50,500,100);

g2.draw(x1);

}}

class H8Ex3 {

public static void main(String args[])

{

lineP pp=new lineP();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 4

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

import javax.swing.*;

public class rectangleP extends JPanel

{ private static final long serialVersionUID = 8000004L;

public void paintComponent(Graphics g)

{

Graphics2D g2=(Graphics2D)g;

super.paintComponent(g);

g2.setFont(new Font("Serif",Font.BOLD,24));

g2.setColor(Color.red);

this.setBackground(Color.MAGENTA);

g2.setStroke(new BasicStroke(10.0f));

Rectangle2D x=new Rectangle2D.Double(50,50,300,200);

g2.fill(x);

}

}

class H8Ex4 {

public static void main(String args[])

{

rectangleP pp=new rectangleP();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 5

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class rectangleP1 extends JPanel

{ private static final long serialVersionUID = 8000005L;

public void paintComponent(Graphics g)

{

Graphics2D g2=(Graphics2D)g;

super.paintComponent(g);

g2.setFont(new Font("Serif",Font.BOLD,24));

g2.setColor(Color.RED);

this.setBackground(Color.GREEN);

g2.setStroke(new BasicStroke(10.0f));

Rectangle2D x=new Rectangle2D.Double(50,50,300,200);

g2.fill(x);

}

}

class H8Ex5 {

public static void main(String args[])

{

rectangleP1 pp=new rectangleP1();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 6

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class ellipseP extends JPanel

{ private static final long serialVersionUID = 8000006L;

public void paintComponent(Graphics g) {

super.paintComponent(g);

Graphics2D g2=(Graphics2D)g;

g2.setFont(new Font("Serif",Font.BOLD,24));

g2.setColor(Color.RED);

this.setBackground(new Color(0,0,255));

g2.setStroke(new BasicStroke(2.0f));

Ellipse2D x=new Ellipse2D.Double(50,50,500,200);

g2.draw(x);

}

}

class H8Ex6 {

public static void main(String args[])

{

ellipseP pp=new ellipseP();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 7

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class ellipseP1 extends JPanel

{ private static final long serialVersionUID = 8000007L;

public void paintComponent(Graphics g) {

super.paintComponent(g);

Graphics2D g2=(Graphics2D)g;

g2.setFont(new Font("Serif",Font.BOLD,24));

g2.setColor(Color.RED);

this.setBackground(new Color(255,255,255));

float dash3[] = {10.0f,3.0f,3.0f};

BasicStroke d3 = new BasicStroke(3.0f,BasicStroke.CAP_BUTT,

BasicStroke.JOIN_MITER,

3.0f, dash3, 2.0f);

g2.setStroke(d3);

Ellipse2D x=new Ellipse2D.Double(50,50,500,200);

g2.draw(x);

}

}

class H8Ex7 {

public static void main(String args[])

{

ellipseP1 pp=new ellipseP1();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 8 Abstract class version

abstract class f_x

{ abstract double func(double x);}

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

import java.util.Locale;

public class plotP extends JPanel

{ private static final long serialVersionUID = 8000008L;

Locale us=new Locale("US");

//real plot coordinates

double x[];

double y[];

//plot coordinates converted to pixels

int x_pixel[];

int y_pixel[];

// min maximum in real plot coordinates

double xmin;

double xmax;

double ymin;

double ymax;

//plot window size pixel coordinates

private int absx,absy;

//plot relative to plot window

// |---dx1---|-----dx2------|-------dx3|

//plot window draw to dx2, dx1 and dx3 are left

// open at the right and left handside

private int dx1,dx2,dx3;

// |---dy1---|-----dy2------|-------dy3|

//plot window draw to dy2, dy1 and dy3 are left

// open at the top and bottom handside

private int dy1,dy2,dy3;

//number of data points

int n;

//number of plot thicks

int ntick;

//plot color and background color

Color c,cbg;

//plot labels

String xlabel,ylabel,label;

//Plot number format

String format;

//Plot font

Font font;

boolean gridon;

public void setXlabel(String s)

{xlabel=s;}

public void setYlabel(String s)

{ylabel=s;}

public void setPlabel(String s)

{label=s;}

public void setLabels(String s1,String s2,String s3)

{xlabel=s1;ylabel=s2;label=s3;}

public void setFont(Font ff)

{font=ff;}

public void setFormat(String s)

{format=s;}

public void setXmin(double xx1)

{xmin=xx1;}

public void setXmax(double xx2)

{xmax=xx2;}

public void setYmin(double xx)

{ymin=xx;}

public void setYmax(double xx)

{ymax=xx;}

public void setNthick(int nn)

{ntick=nn;}

public void setColor(Color ci)

{c=ci;}

public void setBackground(Color ci)

{c=ci;}

public void setGridOn()

{ gridon=true;}

public void setGridOff()

{ gridon=false;}

public void setVariables()

{format="%8.2f";

c=Color.blue;cbg=Color.lightGray;

font=new Font("Courier",Font.PLAIN,16);

ntick=10;

xlabel="x";

ylabel="y";

label="y=f(x)";

}

public void setFunc(f_x f,double xmini,double xmaxi,int ni)

{ n=ni;

xmin=xmini;

xmax=xmaxi;

double x1[]=new double[n];

double y1[]=new double[n];

x=x1;

y=y1;

int x_pixel1[]=new int[n];

int y_pixel1[]=new int[n];

x_pixel=x_pixel1;

y_pixel=y_pixel1;

ymin=1.0e80;

ymax=-1.0e80;

for(int i=0;i<n;i++)

{x[i] = xmin+(xmax-xmin)*i/(double)(n-1);

y[i] = f.func(x[i]);

if(y[i]<ymin) ymin=y[i];

if(y[i]>ymax) ymax=y[i];

}

}

public double[] min_max(double xi[])

{double ximin=1.0e80;

double ximax=-1.0e80;

double ni=xi.length;

for(int i=0;i<ni;i++)

{

if(xi[i]<ximin) ximin=xi[i];

if(xi[i]>ximax) ximax=xi[i];

}

double a[]={ximin,ximax};

return a;

}

public void setData(double xi[],double yi[])

{ x=xi;

y=yi;

double a1[]=min_max(x);

n=x.length;

xmin=a1[0];

xmax=a1[1];

double a2[]=min_max(y);

ymin=a2[0];

ymax=a2[1];

int x_pixel1[]=new int[n];

int y_pixel1[]=new int[n];

x_pixel=x_pixel1;

y_pixel=y_pixel1;

gridon=false;

}

public plotP(f_x f,double xmini,double xmaxi,int ni)

{

setVariables();

setFunc(f,xmini,xmaxi,ni);

}

public plotP(double xi[],double yi[])

{

setVariables();

setData(xi,yi);

}

public void paintComponent(Graphics g)

{ Graphics2D g2=(Graphics2D)g;

//g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);

g2.setPaint(c);

g2.setFont(font);

Dimension size=getSize();

absx=size.width;

absy=size.height;

dx1=(int)(0.1*absx);

dx3=(int)(0.1*absx);

dx2=absx-dx1-dx3;

dy1=(int)(0.1*absy);

dy3=(int)(0.1*absy);

dy2=absy-dy1-dy3;

//calculate plot coordinates

for(int i=0;i<n;i++)

{x_pixel[i]=dx1+(int)(dx2*(x[i]-xmin)/(xmax-xmin));

y_pixel[i]=dy1+dy2-(int)(dy2*(y[i]-ymin)/(ymax-ymin));

}

//draw plot line

GeneralPath shape=new GeneralPath(GeneralPath.WIND_EVEN_ODD);

shape.moveTo(x_pixel[0],y_pixel[0]);

for(int i=1;i<n;i++)

{ //if the limits are outside the plot window

//plot the limit value

if(x_pixel[i]<dx1) x_pixel[i]=dx1;

else if(x_pixel[i]>(dx1+dx2)) x_pixel[i]=(dx1+dx2);

if(y_pixel[i]>(dy1+dy2)) y_pixel[i]=dy1+dy2;

else if(y_pixel[i]<dy1) y_pixel[i]=dy1;

shape.lineTo(x_pixel[i],y_pixel[i]);}

g2.draw(shape);

Rectangle2D d=new Rectangle2D.Double(dx1,dy1,dx2,dy2);

g2.draw(d);

//draw xtick

int xtick[]=new int[ntick];

Line2D xt[]=new Line2D[ntick];

for(int i=0;i<ntick;i++)

{xtick[i]=dx1+dx2*i/ntick;

if(!gridon)

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],(dy1+dy2*0.98));

else

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],dy1);

g2.draw(xt[i]);

}

//draw x numbers

int xtick1[]=new int[ntick+1];

String xnumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{xtick1[i]=(int)(dx1*0.98)+dx2*i/ntick;

double x1=(xmin+(xmax-xmin)*i/(double)ntick);

xnumber[i]=String.format(us,format,x1);

g2.drawString(xnumber[i],xtick1[i]-20,dy1+(int)(dy2*1.04));

}

//draw ytick

int ytick[]=new int[ntick];

Line2D yt[]=new Line2D[ntick];

for(int i=1;i<ntick;i++)

{ytick[i]=dy1+dy2*i/ntick;

if(!gridon)

yt[i]=new Line2D.Double(dx1,ytick[i],dx1+10,ytick[i]);

else

yt[i]=new Line2D.Double(dx1,ytick[i],(dx1+dx2),ytick[i]);

g2.draw(yt[i]);

}

//draw y numbers

int ytick1[]=new int[ntick+1];

String ynumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{ytick1[i]=dy1+dy2-dy2*i/ntick;

ynumber[i]=String.format("%8.2f",(ymin+(ymax-ymin)*i/(double)ntick));

g2.drawString(ynumber[i],dx1/2,ytick1[i]);

//draw labels;

//x label

g2.drawString(xlabel,(dx1+dx2/2),(dy1+(int)(dy2*1.1)));

int xx1=dx1/3;

int yy1=(dy1+dy2/2);

//y label

AffineTransform at=AffineTransform.getRotateInstance(3.0*Math.PI/2.0,xx1,yy1);

g2.setTransform(at);

g2.drawString(ylabel,xx1,yy1);

at=AffineTransform.getRotateInstance(0,xx1,yy1);

g2.setTransform(at);

//plot label

g2.drawString(label,(dx1+dx2/2),(int)(dy1*0.8));

}

}

public void plot(String s)

{ JFrame f = new JFrame(s);

f.add(this);

f.setBackground(cbg);

f.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );

f.setSize(1200,800);

f.setVisible(true);

}

public void plot()

{ plot("Plot window"); }

}

import javax.swing.*;

class fb extends f_x

{ public double func(double x)

{ return Math.tan(x);}

}

class H8Ex8 {

public static void main(String args[])

{

fb ff=new fb();

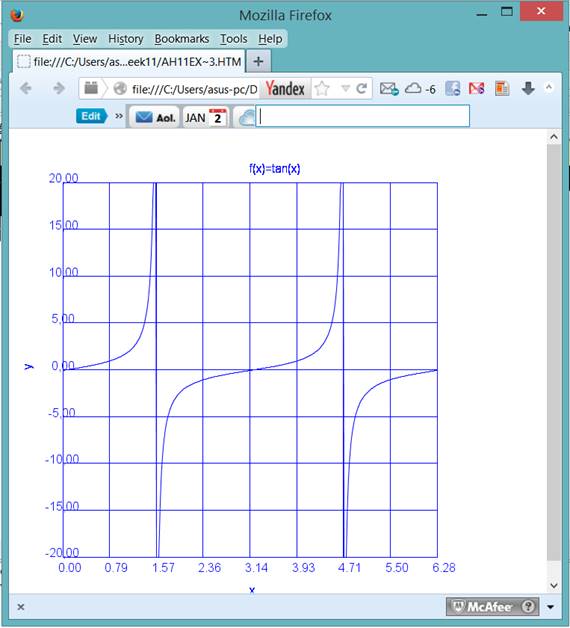

plotP pp=new plotP(ff,0.0,2.0*Math.PI,1000);

pp.setYmin(-20.0);

pp.setYmax(20.0);

pp.setPlabel("f(x)=tan(x)");

pp.setGridOn();

pp.setNthick(8);

pp.plot("tangent");

double x[]={0,1,2,3,4,5,6};

double y[]={0,1,4,9,16,25,36};

plotP pp1=new plotP(x,y);

pp1.setNthick(6);

pp1.plot();

}

}

EXERCISE 8I Interface version

public interface f_xI

{ double func(double x);}

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

import java.util.Locale;

public class plotPI extends JPanel

{ private static final long serialVersionUID = 80000081L;

Locale us=new Locale("US");

//real plot coordinates

double x[];

double y[];

//plot coordinates converted to pixels

int x_pixel[];

int y_pixel[];

// min maximum in real plot coordinates

double xmin;

double xmax;

double ymin;

double ymax;

//plot window size pixel coordinates

private int absx,absy;

//plot relative to plot window

// |---dx1---|-----dx2------|-------dx3|

//plot window draw to dx2, dx1 and dx3 are left

// open at the right and left handside

private int dx1,dx2,dx3;

// |---dy1---|-----dy2------|-------dy3|

//plot window draw to dy2, dy1 and dy3 are left

// open at the top and bottom handside

private int dy1,dy2,dy3;

//number of data points

int n;

//number of plot thicks

int ntick;

//plot color and background color

Color c,cbg;

//plot labels

String xlabel,ylabel,label;

//Plot number format

String format;

//Plot font

Font font;

boolean gridon;

public void setXlabel(String s)

{xlabel=s;}

public void setYlabel(String s)

{ylabel=s;}

public void setPlabel(String s)

{label=s;}

public void setLabels(String s1,String s2,String s3)

{xlabel=s1;ylabel=s2;label=s3;}

public void setFont(Font ff)

{font=ff;}

public void setFormat(String s)

{format=s;}

public void setXmin(double xx1)

{xmin=xx1;}

public void setXmax(double xx2)

{xmax=xx2;}

public void setYmin(double xx)

{ymin=xx;}

public void setYmax(double xx)

{ymax=xx;}

public void setNthick(int nn)

{ntick=nn;}

public void setColor(Color ci)

{c=ci;}

public void setBackground(Color ci)

{c=ci;}

public void setGridOn()

{ gridon=true;}

public void setGridOff()

{ gridon=false;}

public void setVariables()

{format="%8.2f";

c=Color.blue;cbg=Color.lightGray;

font=new Font("Courier",Font.PLAIN,16);

ntick=10;

xlabel="x";

ylabel="y";

label="y=f(x)";

}

public void setFunc(f_xI f,double xmini,double xmaxi,int ni)

{ n=ni;

xmin=xmini;

xmax=xmaxi;

double x1[]=new double[n];

double y1[]=new double[n];

x=x1;

y=y1;

int x_pixel1[]=new int[n];

int y_pixel1[]=new int[n];

x_pixel=x_pixel1;

y_pixel=y_pixel1;

ymin=1.0e80;

ymax=-1.0e80;

for(int i=0;i<n;i++)

{x[i] = xmin+(xmax-xmin)*i/(double)(n-1);

y[i] = f.func(x[i]);

if(y[i]<ymin) ymin=y[i];

if(y[i]>ymax) ymax=y[i];

}

}

public double[] min_max(double xi[])

{double ximin=1.0e80;

double ximax=-1.0e80;

double ni=xi.length;

for(int i=0;i<ni;i++)

{

if(xi[i]<ximin) ximin=xi[i];

if(xi[i]>ximax) ximax=xi[i];

}

double a[]={ximin,ximax};

return a;

}

public void setData(double xi[],double yi[])

{ x=xi;

y=yi;

double a1[]=min_max(x);

n=x.length;

xmin=a1[0];

xmax=a1[1];

double a2[]=min_max(y);

ymin=a2[0];

ymax=a2[1];

int x_pixel1[]=new int[n];

int y_pixel1[]=new int[n];

x_pixel=x_pixel1;

y_pixel=y_pixel1;

gridon=false;

}

public plotPI(f_xI f,double xmini,double xmaxi,int ni)

{

setVariables();

setFunc(f,xmini,xmaxi,ni);

}

public plotPI(double xi[],double yi[])

{

setVariables();

setData(xi,yi);

}

public void paintComponent(Graphics g)

{ Graphics2D g2=(Graphics2D)g;

//g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);

g2.setPaint(c);

g2.setFont(font);

Dimension size=getSize();

absx=size.width;

absy=size.height;

dx1=(int)(0.1*absx);

dx3=(int)(0.1*absx);

dx2=absx-dx1-dx3;

dy1=(int)(0.1*absy);

dy3=(int)(0.1*absy);

dy2=absy-dy1-dy3;

//calculate plot coordinates

for(int i=0;i<n;i++)

{x_pixel[i]=dx1+(int)(dx2*(x[i]-xmin)/(xmax-xmin));

y_pixel[i]=dy1+dy2-(int)(dy2*(y[i]-ymin)/(ymax-ymin));

}

//draw plot line

GeneralPath shape=new GeneralPath(GeneralPath.WIND_EVEN_ODD);

shape.moveTo(x_pixel[0],y_pixel[0]);

for(int i=1;i<n;i++)

{ //if the limits are outside the plot window

//plot the limit value

if(x_pixel[i]<dx1) x_pixel[i]=dx1;

else if(x_pixel[i]>(dx1+dx2)) x_pixel[i]=(dx1+dx2);

if(y_pixel[i]>(dy1+dy2)) y_pixel[i]=dy1+dy2;

else if(y_pixel[i]<dy1) y_pixel[i]=dy1;

shape.lineTo(x_pixel[i],y_pixel[i]);}

g2.draw(shape);

Rectangle2D d=new Rectangle2D.Double(dx1,dy1,dx2,dy2);

g2.draw(d);

//draw xtick

int xtick[]=new int[ntick];

Line2D xt[]=new Line2D[ntick];

for(int i=0;i<ntick;i++)

{xtick[i]=dx1+dx2*i/ntick;

if(!gridon)

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],(dy1+dy2*0.98));

else

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],dy1);

g2.draw(xt[i]);

}

//draw x numbers

int xtick1[]=new int[ntick+1];

String xnumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{xtick1[i]=(int)(dx1*0.98)+dx2*i/ntick;

double x1=(xmin+(xmax-xmin)*i/(double)ntick);

xnumber[i]=String.format(us,format,x1);

g2.drawString(xnumber[i],xtick1[i]-20,dy1+(int)(dy2*1.04));

}

//draw ytick

int ytick[]=new int[ntick];

Line2D yt[]=new Line2D[ntick];

for(int i=1;i<ntick;i++)

{ytick[i]=dy1+dy2*i/ntick;

if(!gridon)

yt[i]=new Line2D.Double(dx1,ytick[i],dx1+10,ytick[i]);

else

yt[i]=new Line2D.Double(dx1,ytick[i],(dx1+dx2),ytick[i]);

g2.draw(yt[i]);

}

//draw y numbers

int ytick1[]=new int[ntick+1];

String ynumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{ytick1[i]=dy1+dy2-dy2*i/ntick;

ynumber[i]=String.format("%8.2f",(ymin+(ymax-ymin)*i/(double)ntick));

g2.drawString(ynumber[i],dx1/2,ytick1[i]);

//draw labels;

//x label

g2.drawString(xlabel,(dx1+dx2/2),(dy1+(int)(dy2*1.1)));

int xx1=dx1/3;

int yy1=(dy1+dy2/2);

//y label

AffineTransform at=AffineTransform.getRotateInstance(3.0*Math.PI/2.0,xx1,yy1);

g2.setTransform(at);

g2.drawString(ylabel,xx1,yy1);

at=AffineTransform.getRotateInstance(0,xx1,yy1);

g2.setTransform(at);

//plot label

g2.drawString(label,(dx1+dx2/2),(int)(dy1*0.8));

}

}

public void plot(String s)

{ JFrame f = new JFrame(s);

f.add(this);

f.setBackground(cbg);

f.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );

f.setSize(1200,800);

f.setVisible(true);

}

public void plot()

{ plot("Plot window"); }

}

import javax.swing.*;

class H8Ex8I {

public static void main(String args[])

{

f_xI ff=x->Math.tan(x);

plotPI pp=new plotPI(ff,0.0,2.0*Math.PI,1000);

pp.setYmin(-20.0);

pp.setYmax(20.0);

pp.setPlabel("f(x)=tan(x)");

pp.setGridOn();

pp.setNthick(8);

pp.plot("tangent");

double x[]={0,1,2,3,4,5,6};

double y[]={0,1,4,9,16,25,36};

plotPI pp1=new plotPI(x,y);

pp1.setNthick(6);

pp1.plot();

}

}

EXERCISE 9

import java.util.*;

public class ellipseP2 extends JPanel

{ private static final long serialVersionUID = 8000009L;

TexturePaint tp = getImageTexture("fall.jpg");

public TexturePaint getImageTexture(String imageFile)

{

URL url = getClass().getResource(imageFile);

Image img = getToolkit().getImage(url);

try {

MediaTracker tracker = new MediaTracker(this);

tracker.addImage(img, 0);

tracker.waitForID(0);

} catch (Exception e) {}

int width = img.getWidth(this);

int height = img.getHeight(this);

BufferedImage buffImg = new BufferedImage(width, height, BufferedImage.TYPE_INT_ARGB);

Graphics g = buffImg.getGraphics();

g.drawImage(img, 0, 0, this);

Rectangle2D rect = new Rectangle(0, 0, width, height);

return new TexturePaint(buffImg, rect);

}

public void paintComponent(Graphics g) {

super.paintComponent(g);

Graphics2D g2=(Graphics2D)g;

g2.setPaint(tp);

g2.setFont(new Font("Serif",Font.BOLD,24));

//g2.setColor(Color.RED);

//this.setBackground(new Color(255,255,255));

Ellipse2D x=new Ellipse2D.Double(50,50,500,200);

g2.fill(x);

}

}

class H8Ex9 {

public static void main(String args[])

{

ellipseP2 pp=new ellipseP2();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 10

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class graph2P extends JPanel

{

public void paintComponent(Graphics g)

{ super.paintComponent(g);

Graphics2D g2 = (Graphics2D)g;

g2.setPaint(Color.blue);

Ellipse2D elips1=new Ellipse2D.Double(55,55,90,30);

g2.fill(elips1);

g2.setPaint(Color.black);

Ellipse2D elips2=new Ellipse2D.Double(50,50,100,40);

g2.draw(elips2);

g2.setPaint(Color.black);

Ellipse2D elips3=new Ellipse2D.Double(50,150,100,40);

g2.draw(elips3);

GradientPaint kirmizidanbeyaza=new GradientPaint(250,50,Color.red,350,90,Color.white);

g2.setPaint(kirmizidanbeyaza);

Ellipse2D elips4=new Ellipse2D.Double(250,50,100,40);

g2.fill(elips4);

GradientPaint kirmizidanmaviye=new GradientPaint(250,150,Color.red,350,190,Color.blue);

g2.setPaint(kirmizidanmaviye);

Ellipse2D elips5=new Ellipse2D.Double(250,150,100,40);

g2.fill(elips5);

g2.setPaint(Color.black);

g2.draw(elips5);

}

}

class H10Ex10 {

public static void main(String args[])

{

graph2P pp=new graph2P();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 11

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class starP extends JPanel

{ private static final long serialVersionUID = 8000011L;

public void paint(Graphics g)

{

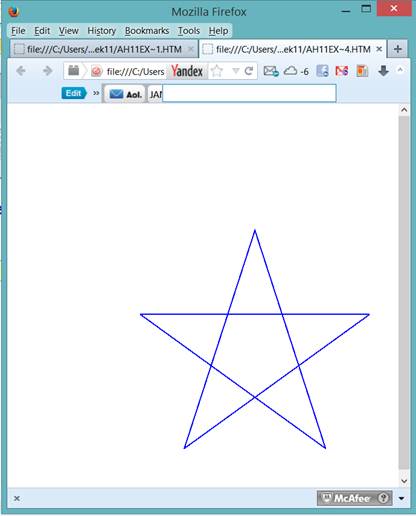

int x[]={55,67,109,73,83,55,27,37,1,43};

int y[]={0,36,36,54,96,72,96,54,36,36};

Graphics2D g2=(Graphics2D)g;

GeneralPath star=new GeneralPath();

star.moveTo(x[0],y[0]);

for(int i=1;i<x.length;i++)

{star.lineTo(x[i],y[i]);}

star.closePath();

g2.setColor(Color.blue);

g2.draw(star);

}

}

class H10Ex11 {

public static void main(String args[])

{

starP pp=new starP();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 12

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class quadcurveP extends JPanel

{ private static final long serialVersionUID = 8000012L;

public void paintComponent(Graphics g) {

super.paintComponent(g);

Graphics2D g2 = (Graphics2D)g;

g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,

RenderingHints.VALUE_ANTIALIAS_ON);

Dimension boyut=getSize();

int dx=boyut.width;

int dy=boyut.height;

g2.setPaint(Color.BLACK);

g2.draw3DRect(0,0,dx-3,dy-3,true);

g2.draw3DRect(3,3,dx-7,dy-7,false);

g2.setPaint(Color.BLACK);

QuadCurve2D qc2=new QuadCurve2D.Double(0,125,140,225,225,150);

g2.draw(qc2);

QuadCurve2D qc2_1=new QuadCurve2D.Double(0,200,155,225,225,170);

g2.setPaint(Color.blue);

g2.fill(qc2_1);

}

}

class H8Ex12 {

public static void main(String args[])

{

quadcurveP pp=new quadcurveP();

FrameGraphic.plot("Plot window",pp);

}

}

EXERCISE 13

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

public class generalcurveP extends JPanel

{

public void paintComponent(Graphics g) {

super.paintComponent(g);

Graphics2D g2 = (Graphics2D)g;

setBackground(Color.lightGray);

Dimension boyut=getSize();

int dx=boyut.width;

int dy=boyut.height;

g2.setStroke(new BasicStroke(3));

g2.draw3DRect(0,0,dx-3,dy-3,true);

g2.draw3DRect(3,3,dx-7,dy-7,false);

GeneralPath shape=new GeneralPath(GeneralPath.WIND_EVEN_ODD);

shape.moveTo(20,20);

//quadratic addition

shape.quadTo(160,120,245,45);

//cubic addition

shape.curveTo(195,95,295,145,245,195);

shape.curveTo(-80,110,345,110,20,195);

shape.curveTo(400,250,200,250,20,20);

g2.draw(shape);

}

}

class H10Ex13 {

public static void main(String args[])

{

generalcurveP pp=new generalcurveP();

FrameGraphic.plot("Plot window",pp);

}

}

HOMEWORKS JFRAME

HOMEWORK 1) In Exercise 8 class plotP (JPANEL ) is given. In this class in order to plot the line class GeneralPath and method lineTo is used. Instead of this, write a version that use moveTo and quadTo (quadratic line plotter) to create plot

HOMEWORK 2) In Exercise 8 class plotP (JPANEL ) is given. Plot function y=Math.sin(x)*(0.1*Math.random() ) by using class plotP between x=0 and x=p .

HOMEWORK 3) In Exercise 8 class plotP (JPANEL ) is given. Plot data

double x[]={1,2,3,4,5,6,7,8,9};

double y[]={-1,-2,-1,2,7,14,23,34,47}

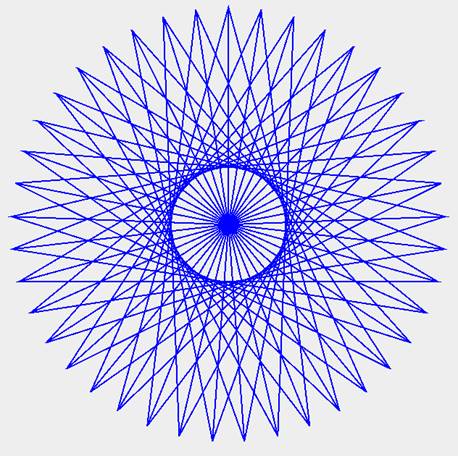

HOMEWORK 4) Write a program to draw following graphics

HOMEWORK 5) Write a FrameGraphic program to draw a pentagon(five sided shape)

APPLET EXERCISES WITH JAPPLET AVD JPANEL CLASSES

EXERCISE 1 ABSTRACT CLASS FUNCTION PLOT

abstract class f_x

{ abstract double func(double x);}

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

import java.util.Locale;

public class plotP extends JPanel

{ private static final long serialVersionUID = 8100008L;

Locale us=new Locale("US");

//real plot coordinates

double x[];

double y[];

//plot coordinates converted to pixels

int x_pixel[];

int y_pixel[];

// min maximum in real plot coordinates

double xmin;

double xmax;

double ymin;

double ymax;

//plot window size pixel coordinates

private int absx,absy;

//plot relative to plot window

// |---dx1---|-----dx2------|-------dx3|

//plot window draw to dx2, dx1 and dx3 are left

// open at the right and left handside

private int dx1,dx2,dx3;

// |---dy1---|-----dy2------|-------dy3|

//plot window draw to dy2, dy1 and dy3 are left

// open at the top and bottom handside

private int dy1,dy2,dy3;

//number of data points

int n;

//number of plot thicks

int ntick;

//plot color and background color

Color c,cbg;

//plot labels

String xlabel,ylabel,label;

//Plot number format

String format;

//Plot font

Font font;

boolean gridon;

boolean splineon;

public void setXlabel(String s)

{xlabel=s;}

public void setYlabel(String s)

{ylabel=s;}

public void setPlabel(String s)

{label=s;}

public void setLabels(String s1,String s2,String s3)

{xlabel=s1;ylabel=s2;label=s3;}

public void setFont(Font ff)

{font=ff;}

public void setFormat(String s)

{format=s;}

public void setXmin(double xx1)

{xmin=xx1;}

public void setXmax(double xx2)

{xmax=xx2;}

public void setYmin(double xx)

{ymin=xx;}

public void setYmax(double xx)

{ymax=xx;}

public void setNthick(int nn)

{ntick=nn;}

public void setColor(Color ci)

{c=ci;}

public void setBackground(Color ci)

{c=ci;}

public void setGridOn()

{ gridon=true;}

public void setGridOff()

{ gridon=false;}

public void setVariables(boolean b)

{ format="%8.2f";

c=Color.blue;cbg=Color.lightGray;

font=new Font("Courier",Font.PLAIN,16);

ntick=10;

xlabel="x";

ylabel="y";

label="y=f(x)";

gridon=false;

splineon=b;

}

public double[][] setFunc(f_x f,double xmini,double xmaxi)

{n=500;

return setFunc(f,xmini,xmaxi,n);

}

public double[][] setFunc(f_x f,double xmini,double xmaxi,int ni)

{ n=ni;

double x1[]=new double[n];

double y1[]=new double[n];

for(int i=0;i<n;i++)

{x1[i] = xmini+(xmaxi-xmini)*i/(double)(n-1);

y1[i] = f.func(x1[i]);

}

double a[][]={x1,y1};

return a;

}

public double[] min_max(double xi[])

{double ximin=1.0e80;

double ximax=-1.0e80;

double ni=xi.length;

for(int i=0;i<ni;i++)

{

if(xi[i]<ximin) ximin=xi[i];

if(xi[i]>ximax) ximax=xi[i];

}

double a[]={ximin,ximax};

return a;

}

public void setData(double xy[][])

{double x1[]=xy[0];

double y1[]=xy[1];

setData(x1,y1);

}

public void setData(double xi[],double yi[])

{ if(splineon)

{

double a[][]=cubic_spline.funcSpline(xi,yi,10);

x=a[0];

y=a[1];

}

else

{x=xi;y=yi;}

double a1[]=min_max(x);

n=x.length;

xmin=a1[0];

xmax=a1[1];

double a2[]=min_max(y);

ymin=a2[0];

ymax=a2[1];

int x_pixel1[]=new int[n];

int y_pixel1[]=new int[n];

x_pixel=x_pixel1;

y_pixel=y_pixel1;

gridon=false;

}

public plotP(f_x f,double xmini,double xmaxi,int ni)

{ //cubic spline interpolation can be applied to the data

setVariables(false);

setData(setFunc(f,xmini,xmaxi,ni));

}

public plotP(f_x f,double xmini,double xmaxi,int ni,boolean spline)

{ //cubic spline interpolation can be applied to the data

setVariables(spline);

setData(setFunc(f,xmini,xmaxi,ni));

}

public plotP(f_x f,double xmini,double xmaxi)

{

setVariables(false);

setData(setFunc(f,xmini,xmaxi));

}

public plotP(double xi[],double yi[],boolean spline)

{

setVariables( spline);

setData(xi,yi);

}

public void paintComponent(Graphics g)

{ Graphics2D g2=(Graphics2D)g;

g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);

g2.setPaint(c);

g2.setFont(font);

Dimension size=getSize();

absx=size.width;

absy=size.height;

dx1=(int)(0.1*absx);

dx3=(int)(0.1*absx);

dx2=absx-dx1-dx3;

dy1=(int)(0.1*absy);

dy3=(int)(0.1*absy);

dy2=absy-dy1-dy3;

//calculate plot coordinates

for(int i=0;i<n;i++)

{x_pixel[i]=dx1+(int)(dx2*(x[i]-xmin)/(xmax-xmin));

y_pixel[i]=dy1+dy2-(int)(dy2*(y[i]-ymin)/(ymax-ymin));

}

//draw plot line

GeneralPath shape=new GeneralPath(GeneralPath.WIND_EVEN_ODD);

shape.moveTo(x_pixel[0],y_pixel[0]);

for(int i=1;i<n;i+=2)

{ //if the limits are outside the plot window

//plot the limit value

if(x_pixel[i]<dx1) x_pixel[i]=dx1;

else if(x_pixel[i]>(dx1+dx2)) x_pixel[i]=(dx1+dx2);

if(y_pixel[i]>(dy1+dy2)) y_pixel[i]=dy1+dy2;

else if(y_pixel[i]<dy1) y_pixel[i]=dy1;

shape.lineTo(x_pixel[i],y_pixel[i]);}

g2.draw(shape);

Rectangle2D d=new Rectangle2D.Double(dx1,dy1,dx2,dy2);

g2.draw(d);

//draw xtick

int xtick[]=new int[ntick];

Line2D xt[]=new Line2D[ntick];

for(int i=0;i<ntick;i++)

{xtick[i]=dx1+dx2*i/ntick;

if(!gridon)

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],(dy1+dy2*0.98));

else

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],dy1);

g2.draw(xt[i]);

}

//draw x numbers

int xtick1[]=new int[ntick+1];

String xnumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{xtick1[i]=(int)(dx1*0.98)+dx2*i/ntick;

double x1=(xmin+(xmax-xmin)*i/(double)ntick);

xnumber[i]=String.format(us,format,x1);

g2.drawString(xnumber[i],xtick1[i]-20,dy1+(int)(dy2*1.04));

}

//draw ytick

int ytick[]=new int[ntick];

Line2D yt[]=new Line2D[ntick];

for(int i=1;i<ntick;i++)

{ytick[i]=dy1+dy2*i/ntick;

if(!gridon)

yt[i]=new Line2D.Double(dx1,ytick[i],dx1+10,ytick[i]);

else

yt[i]=new Line2D.Double(dx1,ytick[i],(dx1+dx2),ytick[i]);

g2.draw(yt[i]);

}

//draw y numbers

int ytick1[]=new int[ntick+1];

String ynumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{ytick1[i]=dy1+dy2-dy2*i/ntick;

ynumber[i]=String.format("%8.2f",(ymin+(ymax-ymin)*i/(double)ntick));

g2.drawString(ynumber[i],dx1/2,ytick1[i]);

//draw labels;

//x label

g2.drawString(xlabel,(dx1+dx2/2),(dy1+(int)(dy2*1.1)));

int xx1=dx1/3;

int yy1=(dy1+dy2/2);

//y label

AffineTransform at=AffineTransform.getRotateInstance(3.0*Math.PI/2.0,xx1,yy1);

g2.setTransform(at);

g2.drawString(ylabel,xx1,yy1);

at=AffineTransform.getRotateInstance(0,xx1,yy1);

g2.setTransform(at);

//plot label

g2.drawString(label,(dx1+dx2/2),(int)(dy1*0.8));

}

}

public void plot(String s)

{ JFrame f = new JFrame(s);

f.add(this);

f.setBackground(cbg);

f.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );

f.setSize(1200,800);

f.setVisible(true);

}

public void plot()

{ plot("Plot window"); }

}

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

class fb extends f_x

{ public double func(double x)

{ return Math.tan(x);}

}

public class AH11Ex1 extends JApplet

{

public void init()

{

fb ff=new fb();

plotP pp=new plotP(ff,0.0,2.0*Math.PI,1000);

pp.setYmin(-20.0);

pp.setYmax(20.0);

pp.setPlabel("f(x)=tan(x)");

pp.setGridOn();

pp.setNthick(8);

add(pp);

}

}

HTML file AH8EX1.html

<html>

<applet code="AH8Ex1.class" width=500 height=500>

</applet>

</html>

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

class fb extends f_x

{ public double func(double x)

{ return Math.tan(x);}

}

public class AH8Ex1 extends JApplet

{ private static final long serialVersionUID = 8200008L;

public void init()

{

fb ff=new fb();

plotP pp=new plotP(ff,0.0,2.0*Math.PI,1000);

pp.setYmin(-20.0);

pp.setYmax(20.0);

pp.setPlabel("f(x)=tan(x)");

pp.setGridOn();

pp.setNthick(8);

add(pp);

}

}

EXERCISE 1I Interface type Plot (same as previous program but use Interface instead of abstract class)

public interface f_xI

{ double func(double x);}

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

import java.awt.geom.*;

import java.util.Locale;

public class plotPI extends JPanel

{ private static final long serialVersionUID = 8100008L;

Locale us=new Locale("US");

//real plot coordinates

double x[];

double y[];

//plot coordinates converted to pixels

int x_pixel[];

int y_pixel[];

// min maximum in real plot coordinates

double xmin;

double xmax;

double ymin;

double ymax;

//plot window size pixel coordinates

private int absx,absy;

//plot relative to plot window

// |---dx1---|-----dx2------|-------dx3|

//plot window draw to dx2, dx1 and dx3 are left

// open at the right and left handside

private int dx1,dx2,dx3;

// |---dy1---|-----dy2------|-------dy3|

//plot window draw to dy2, dy1 and dy3 are left

// open at the top and bottom handside

private int dy1,dy2,dy3;

//number of data points

int n;

//number of plot thicks

int ntick;

//plot color and background color

Color c,cbg;

//plot labels

String xlabel,ylabel,label;

//Plot number format

String format;

//Plot font

Font font;

boolean gridon;

boolean splineon;

public void setXlabel(String s)

{xlabel=s;}

public void setYlabel(String s)

{ylabel=s;}

public void setPlabel(String s)

{label=s;}

public void setLabels(String s1,String s2,String s3)

{xlabel=s1;ylabel=s2;label=s3;}

public void setFont(Font ff)

{font=ff;}

public void setFormat(String s)

{format=s;}

public void setXmin(double xx1)

{xmin=xx1;}

public void setXmax(double xx2)

{xmax=xx2;}

public void setYmin(double xx)

{ymin=xx;}

public void setYmax(double xx)

{ymax=xx;}

public void setNthick(int nn)

{ntick=nn;}

public void setColor(Color ci)

{c=ci;}

public void setBackground(Color ci)

{c=ci;}

public void setGridOn()

{ gridon=true;}

public void setGridOff()

{ gridon=false;}

public void setVariables(boolean b)

{ format="%8.2f";

c=Color.blue;cbg=Color.lightGray;

font=new Font("Courier",Font.PLAIN,16);

ntick=10;

xlabel="x";

ylabel="y";

label="y=f(x)";

gridon=false;

splineon=b;

}

public double[][] setFunc(f_xI f,double xmini,double xmaxi)

{n=500;

return setFunc(f,xmini,xmaxi,n);

}

public double[][] setFunc(f_xI f,double xmini,double xmaxi,int ni)

{ n=ni;

double x1[]=new double[n];

double y1[]=new double[n];

for(int i=0;i<n;i++)

{x1[i] = xmini+(xmaxi-xmini)*i/(double)(n-1);

y1[i] = f.func(x1[i]);

}

double a[][]={x1,y1};

return a;

}

public double[] min_max(double xi[])

{double ximin=1.0e80;

double ximax=-1.0e80;

double ni=xi.length;

for(int i=0;i<ni;i++)

{

if(xi[i]<ximin) ximin=xi[i];

if(xi[i]>ximax) ximax=xi[i];

}

double a[]={ximin,ximax};

return a;

}

public void setData(double xy[][])

{double x1[]=xy[0];

double y1[]=xy[1];

setData(x1,y1);

}

public void setData(double xi[],double yi[])

{ if(splineon)

{

double a[][]=cubic_spline.funcSpline(xi,yi,10);

x=a[0];

y=a[1];

}

else

{x=xi;y=yi;}

double a1[]=min_max(x);

n=x.length;

xmin=a1[0];

xmax=a1[1];

double a2[]=min_max(y);

ymin=a2[0];

ymax=a2[1];

int x_pixel1[]=new int[n];

int y_pixel1[]=new int[n];

x_pixel=x_pixel1;

y_pixel=y_pixel1;

gridon=false;

}

public plotPI(f_xI f,double xmini,double xmaxi,int ni)

{ //cubic spline interpolation can be applied to the data

setVariables(false);

setData(setFunc(f,xmini,xmaxi,ni));

}

public plotPI(f_xI f,double xmini,double xmaxi,int ni,boolean spline)

{ //cubic spline interpolation can be applied to the data

setVariables(spline);

setData(setFunc(f,xmini,xmaxi,ni));

}

public plotPI(f_xI f,double xmini,double xmaxi)

{

setVariables(false);

setData(setFunc(f,xmini,xmaxi));

}

public plotPI(double xi[],double yi[],boolean spline)

{

setVariables( spline);

setData(xi,yi);

}

public void paintComponent(Graphics g)

{ Graphics2D g2=(Graphics2D)g;

g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);

g2.setPaint(c);

g2.setFont(font);

Dimension size=getSize();

absx=size.width;

absy=size.height;

dx1=(int)(0.1*absx);

dx3=(int)(0.1*absx);

dx2=absx-dx1-dx3;

dy1=(int)(0.1*absy);

dy3=(int)(0.1*absy);

dy2=absy-dy1-dy3;

//calculate plot coordinates

for(int i=0;i<n;i++)

{x_pixel[i]=dx1+(int)(dx2*(x[i]-xmin)/(xmax-xmin));

y_pixel[i]=dy1+dy2-(int)(dy2*(y[i]-ymin)/(ymax-ymin));

}

//draw plot line

GeneralPath shape=new GeneralPath(GeneralPath.WIND_EVEN_ODD);

shape.moveTo(x_pixel[0],y_pixel[0]);

for(int i=1;i<n;i+=2)

{ //if the limits are outside the plot window

//plot the limit value

if(x_pixel[i]<dx1) x_pixel[i]=dx1;

else if(x_pixel[i]>(dx1+dx2)) x_pixel[i]=(dx1+dx2);

if(y_pixel[i]>(dy1+dy2)) y_pixel[i]=dy1+dy2;

else if(y_pixel[i]<dy1) y_pixel[i]=dy1;

shape.lineTo(x_pixel[i],y_pixel[i]);}

g2.draw(shape);

Rectangle2D d=new Rectangle2D.Double(dx1,dy1,dx2,dy2);

g2.draw(d);

//draw xtick

int xtick[]=new int[ntick];

Line2D xt[]=new Line2D[ntick];

for(int i=0;i<ntick;i++)

{xtick[i]=dx1+dx2*i/ntick;

if(!gridon)

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],(dy1+dy2*0.98));

else

xt[i]=new Line2D.Double(xtick[i],(dy1+dy2),xtick[i],dy1);

g2.draw(xt[i]);

}

//draw x numbers

int xtick1[]=new int[ntick+1];

String xnumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{xtick1[i]=(int)(dx1*0.98)+dx2*i/ntick;

double x1=(xmin+(xmax-xmin)*i/(double)ntick);

xnumber[i]=String.format(us,format,x1);

g2.drawString(xnumber[i],xtick1[i]-20,dy1+(int)(dy2*1.04));

}

//draw ytick

int ytick[]=new int[ntick];

Line2D yt[]=new Line2D[ntick];

for(int i=1;i<ntick;i++)

{ytick[i]=dy1+dy2*i/ntick;

if(!gridon)

yt[i]=new Line2D.Double(dx1,ytick[i],dx1+10,ytick[i]);

else

yt[i]=new Line2D.Double(dx1,ytick[i],(dx1+dx2),ytick[i]);

g2.draw(yt[i]);

}

//draw y numbers

int ytick1[]=new int[ntick+1];

String ynumber[]=new String[ntick+1];

for(int i=0;i<=ntick;i++)

{ytick1[i]=dy1+dy2-dy2*i/ntick;

ynumber[i]=String.format("%8.2f",(ymin+(ymax-ymin)*i/(double)ntick));

g2.drawString(ynumber[i],dx1/2,ytick1[i]);

//draw labels;

//x label

g2.drawString(xlabel,(dx1+dx2/2),(dy1+(int)(dy2*1.1)));

int xx1=dx1/3;

int yy1=(dy1+dy2/2);

//y label

AffineTransform at=AffineTransform.getRotateInstance(3.0*Math.PI/2.0,xx1,yy1);

g2.setTransform(at);

g2.drawString(ylabel,xx1,yy1);

at=AffineTransform.getRotateInstance(0,xx1,yy1);

g2.setTransform(at);

//plot label

g2.drawString(label,(dx1+dx2/2),(int)(dy1*0.8));

}

}

public void plot(String s)

{ JFrame f = new JFrame(s);

f.add(this);

f.setBackground(cbg);

f.setDefaultCloseOperation( JFrame.EXIT_ON_CLOSE );

f.setSize(1200,800);

f.setVisible(true);

}

public void plot()

{ plot("Plot window"); }

}

import java.awt.event.*;

public class AH8Ex1I extends JApplet

{ private static final long serialVersionUID = 8200008L;

public void init()

{

f_xI ff=x->Math.tan(x);

plotPI pp=new plotPI(ff,0.0,2.0*Math.PI,1000);

pp.setYmin(-20.0);

pp.setYmax(20.0);

pp.setPlabel("f(x)=tan(x)");

pp.setGridOn();

pp.setNthick(8);

add(pp);

}

}

<html>

<applet code="AH8Ex1I.class" width=1000 height=500>

</applet>

</html>

EXERCISE 2

import java.io.*;

import java.applet.Applet;

import java.awt.*;

import java.awt.event.*;

import java.util.*;

import javax.swing.*;

import javax.swing.table.*;

import java.awt.*;

import java.awt.event.*;

import javax.swing.event.*;

import java.awt.geom.*;

public class shapes

{ private static final long serialVersionUID = 8100002L;

public static GeneralPath star_polygon( int p,int q,int x,int y,int Ri,double angle)

{

GeneralPath polygon1=new GeneralPath();

double teta=2.0*Math.PI/p*q;

double R=Ri;

polar P1=new polar();

polar P3=new polar();

for(int i=0;i<p;i++)

{

double teta1=angle+teta*i+Math.PI/2.0;

double teta3=angle+teta*(i+1)+Math.PI/2.0;

P1.inputPolar(R,teta1);

if(i==0) polygon1.moveTo((x+(int)P1.xi()),(y-(int)P1.xj()));

else polygon1.lineTo((x+(int)P1.xi()),(y-(int)P1.xj()));

P3.inputPolar(R,teta3);

polygon1.lineTo((x+(int)P3.xi()),(y-(int)P3.xj()));

}

polygon1.closePath();

return polygon1;

}

public static GeneralPath star_polygon1( int p,int q,int x,int y,int Ri,double angle)

{

GeneralPath polygon1=new GeneralPath();

double teta=2.0*Math.PI/p*q;

double R=Ri;

polar P1=new polar();

polar P3=new polar();

for(int i=0;i<p;i++)

{

double teta1=angle+teta*i+Math.PI/2.0;

double teta3=angle+teta*(i+1)+Math.PI/2.0;

P1.inputPolar(R,teta1);

if(i==0) {polygon1.moveTo((x+(int)P1.xi()),(y-(int)P1.xj()));

polygon1.lineTo(x,y);

}

else {polygon1.lineTo((x+(int)P1.xi()),(y-(int)P1.xj()));

polygon1.lineTo(x,y);

}

P3.inputPolar(R,teta3);

polygon1.lineTo((x+(int)P3.xi()),(y-(int)P3.xj()));

}

for(int i=0;i<p;i++)

{

double teta1=angle+teta*i+Math.PI/2.0;

double teta3=angle+teta*(i+1)+Math.PI/2.0;

P1.inputPolar(R,teta1);

if(i==0) polygon1.moveTo((x+(int)P1.xi()),(y-(int)P1.xj()));

else polygon1.lineTo((x+(int)P1.xi()),(y-(int)P1.xj()));

P3.inputPolar(R,teta3);

polygon1.lineTo((x+(int)P3.xi()),(y-(int)P3.xj()));

}

polygon1.closePath();

return polygon1;

}

public static GeneralPath equilateral_polygon( int n,int x,int y,int Ri,double angle)

{// bu yıldız cizime teta=pi/2+aci radyandan baslar

GeneralPath polygon1=new GeneralPath();

double teta=2.0*Math.PI/n;

double R=Ri;

polar P1=new polar();

polar P3=new polar();

for(int i=0;i<n;i++)

{

double teta1=angle+teta*i+Math.PI/2.0;

P1.inputPolar(R,teta1);

if(i==0) polygon1.moveTo((x+(int)P1.xi()),(y-(int)P1.xj()));

else polygon1.lineTo((x+(int)P1.xi()),(y-(int)P1.xj()));

double teta3=angle+teta*(i+1)+Math.PI/2.0;

P3.inputPolar(R,teta3);

polygon1.lineTo((x+(int)P3.xi()),(y-(int)P3.xj()));

}

polygon1.closePath();

return polygon1;

}

public static GeneralPath ray( int n,int x,int y,int Ri,double angle)

{// bu yıldız cizime teta=pi/2+aci radyandan baslar

GeneralPath ray1=new GeneralPath();

double teta=2.0*Math.PI/n;

double R=Ri;

polar P1=new polar();

polar P3=new polar();

for(int i=0;i<n;i++)

{

double teta1=angle+teta*i+Math.PI/2.0;

P1.inputPolar(R,teta1);

ray1.moveTo(x,y);

ray1.lineTo((x+(int)P1.xi()),(y-(int)P1.xj()));

}

//ray1.closePath();

return ray1;

}

public static GeneralPath star( int n,int x,int y,int ri,int Ri,double angle)

{//star start to be drawn at angle: teta=pi/2+angle radian

GeneralPath star1=new GeneralPath();

double teta=2.0*Math.PI/n;

double R=Ri;

double r=ri;

polar P1=new polar();

polar P2=new polar();

polar P3=new polar();

for(int i=0;i<n;i++)

{

double teta1=angle+teta*i+Math.PI/2.0;

double teta2=teta/2+teta1;

P1.inputPolar(R,teta1);

P2.inputPolar(r,teta2);

if(i==0) star1.moveTo((x+(int)P1.xi()),(y-(int)P1.xj()));

else star1.lineTo((x+(int)P1.xi()),(y-(int)P1.xj()));

star1.lineTo((x+(int)P2.xi()),(y-(int)P2.xj()));

double teta3=angle+teta*(i+1)+Math.PI/2.0;

P3.inputPolar(R,teta3);

star1.lineTo((x+(int)P3.xi()),(y-(int)P3.xj()));

}

star1.closePath();

return star1;

}

public static GeneralPath star1( int n,int x,int y,int ri,int Ri,double angle)

{//star start to be drawn at angle: teta=pi/2+angle radian

GeneralPath star1=new GeneralPath();

double teta=2.0*Math.PI/n;

double R=Ri;

double r=ri;

if(r>R) r=0.25*R;

polar P1=new polar();

polar P2=new polar();

polar P3=new polar();

for(int i=0;i<n;i++)

{

double teta1=angle+teta*i+Math.PI/2.0;

double teta2=teta/2+teta1;

P1.inputPolar(R,teta1);

P2.inputPolar(r,teta2);

if(i==0) star1.moveTo((x+(int)P1.xi()),(y-(int)P1.xj()));

//else star1.lineTo((x+(int)P1.xi()),(y-(int)P1.xj()));

double teta3=angle+teta*(i+1)+Math.PI/2.0;

P3.inputPolar(R,teta3);

star1.quadTo((x+(int)P2.xi()),(y-(int)P2.xj()),(x+(int)P3.xi()),(y-(int)P3.xj()));

}

star1.closePath();

return star1;

}

}

import java.applet.Applet;

import java.awt.*;

import java.awt.event.*;

import java.util.*;

import javax.swing.*;

import javax.swing.table.*;

import java.awt.*;

import java.awt.event.*;

import javax.swing.event.*;

import java.awt.geom.*;

public class star2P extends JPanel

{ private static final long serialVersionUID = 8100012L;

int x,y,r,R;

double angle;

Color c;

int side;

boolean first;

GeneralPath gp,gp1;

public star2P(Color c1, int n,int xi,int yi,int ri,int Ri,double anglei)

{super();

side=n;

c=c1;

x=xi;y=yi;R=Ri;r=ri;

angle=anglei;

first=true;

}

public void setColor(Color c1)

{c=c1;}

public void setside(int n)

{side=n;}

public void setDrawOn()

{first=true;}

public void setDrawOff()

{first=false;}

public void paintComponent(Graphics g)

{

super.paintComponent(g);

Graphics2D g2=(Graphics2D)g;

g2.setFont(new Font("Serif",Font.BOLD,24));

g2.setColor(c);

g2.setStroke(new BasicStroke(2.0f));

gp=shapes.star1(side,x,y,r,R,angle);

gp1=shapes.ray(side,x,y,R,angle);

if(first) {g2.draw(gp);g2.draw(gp1);}

else g2.fill(gp);

}

}

import javax.swing.*;

import java.awt.Graphics;

import java.awt.*;

import java.awt.event.*;

public class AH11Ex2 extends JApplet

{

public void init()

{

star2P pp=new star2P(Color.blue,5,200,200,100,50,0);

add(pp);

}

}

<html>

<applet code="AH8Ex2.class" width=500 height=500>

</applet>

</html>

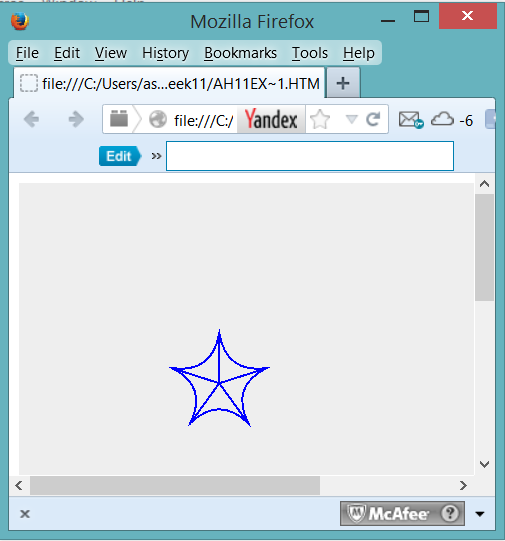

EXERCISE 3

import javax.swing.*;

import java.awt.*;

public class AH11Ex6 extends JApplet

{

public void init()

{

Color c=Color.blue;

//c=JColorChooser.showDialog(null,"color ",Color.red );

star4P pp=new star4P(c,5,2,400,400,200,0);

add(pp);

}

}

import java.io.*;

import java.applet.Applet;

import java.awt.*;

import java.awt.event.*;

import java.util.*;

import javax.swing.*;

import javax.swing.table.*;

import java.awt.*;

import java.awt.event.*;

import javax.swing.event.*;

import java.awt.geom.*;

public class star4P extends JPanel

{

int x,y,R;

double angle;

Color c;

int p,q;

GeneralPath gp,gp1;

public star4P(Color c1, int pi,int qi,int xi,int yi,int Ri,double anglei)

{super();

p=pi;q=qi;

c=c1;

x=xi;y=yi;R=Ri;

angle=anglei;

}

public void setColor(Color c1)

{c=c1;}

public void setside(int pi)

{p=pi;}

public void setpolygon(int qi)

{q=qi;}

public void paintComponent(Graphics g)

{

Graphics2D g2=(Graphics2D)g;

g2.setFont(new Font("Serif",Font.BOLD,24));

g2.setColor(c);

g2.setStroke(new BasicStroke(2.0f));

gp=shapes.star_polygon(p,q,x,y,R,angle);

g2.draw(gp);

}

}

<html>

<applet code="AH11Ex6.class" width=500 height=500>

</applet>

</html>

APPLET HOMEWORKS

HOMEWORK 6) Plot function y=Math.sin(x)*(0.1*Math.random() ) by using class plotP between x=0 and x=p . Use JApplet class

HOMEWORK 7) Plot data double x[]={1,2,3,4,5,6,7,8,9} use JApplet class ;

double y[]={-1,-2,-1,2,7,14,23,34,47}

HOMEWORK8) Write a program to draw following graphics by using JApplet

HOMEWORK 9) Write a FrameGraphic program to draw a pentagon(five sided shape) by using JApplet

HOMEWORK 10) By using class shape, draw the following shape by using JApplet, JFrame version of the program is given below

import javax.swing.*;

import java.awt.*;

class H8Ex8 {

public static void main(String args[])

{

star5P pp=new star5P(Color.blue,41,17,500,500,300,0.0);

pp.setDrawOn();

FrameGraphic.plot("star",pp);

}

}

import javax.swing.table.*;

import java.awt.*;

import java.awt.event.*;

import javax.swing.event.*;

import java.awt.geom.*;

public class star5P extends JPanel

{ private static final long serialVersionUID = 8100015L;

int x,y,r,R;

double angle;

Color c;

int p,q;

boolean first;

GeneralPath gp,gp1;

public star5P(Color c1, int pi,int qi,int xi,int yi,int Ri,double anglei)

{super();

p=pi;q=qi;

c=c1;

x=xi;y=yi;R=Ri;

angle=anglei;

first=true;

}

public void setColor(Color c1)

{c=c1;}

public void setside(int pi)

{p=pi;}

public void setpolygon(int qi)

{q=qi;}

public void setDrawOn()

{first=true;}

public void setDrawOff()

{first=false;}

public void paintComponent(Graphics g)

{

super.paintComponent(g);

Graphics2D g2=(Graphics2D)g;

g2.setFont(new Font("Serif",Font.BOLD,24));

g2.setColor(c);

g2.setStroke(new BasicStroke(2.0f));

gp=shapes.star_polygon1(p,q,x,y,R,angle);

if(first) {g2.draw(gp);}

else g2.fill(gp);

}

}
